Case Studies

WATER INGRESS INTO FILTRATION PLANT

Dust filtration unit with high level fan

The Investigation

MCG Environmental Engineering Ltd were called in by an industrial client to investigate water ingress into their existing filtration plant.

After a comprehensive inspection it was discovered that due to bad design by the original installation company the weight of the high level fan, had caused distortion in the filtration unit discharge plenum. This distortion had broken the seal between the filtration unit and discharge plenum which allowed water to leak into the filtration units.

need more information? call us - 01327 624833
Two dust extraction units connected to a ductwork system

The Solution

 In order to rectify the issue we relocated one of the filtration units to the side of the existing installation, to allow the fan to be installed at low level between the two units. It was a requirement of the client that the fan be relocated to low level to allow for easier routine maintenance and servicing.

Find out more about System Design

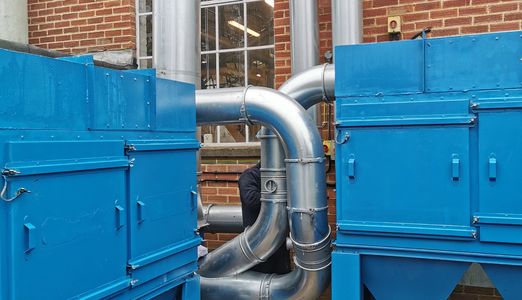

Two dust extraction units connected to a centralised dust extraction system.

Full service & commissioning

The filtration units underwent a full service with new filters, seal and replacement motors fitted to the previously inoperative cleaning system. If you have a problem system and water ingress issues, feel free to contact us on 01327 209638 or email enquires@mcgenvironmentalengineering.com

Find out more about Service & Maintenance

Photo Gallery

Dust filtration unit with centre mounted high level fan.

The system before modification with high level fan.

Dust filtration units connected to a floor mounted fan.

Modified system showing the location of the relocated filtration unit, bespoke discharge Plenum boxes & floor mounted fan.

Dust filtration unit connected to a  smooth bore ductwork system.

Modified system showing the location of the relocated filtration unit & bespoke discharge Plenum boxes.
